Android Auto™

an application which allows the operation
of an Android™ Smartphone using the Mazda Connect

Check here to see Android Auto™

Setup instructions

How to set up a car equipped with the Wireless function.
You can connect your mobile device to your vehicle via Bluetooth® or USB.

Get started with Android Auto™

Check here to see if your Android™ mobile device is available before using Android Auto™.

SEE MORE
Check here to see the compatibility status of your mobile device, available functions, and pairing method.

SEE MORE

Android™ Smartphone settings

1. Make sure Android Auto™ is turned on in your car settings.

2. Make sure your smartphone's mobile data connection is strong and fast.
・Before you use Android Auto™ with your vehicle, you need to download the Android Auto application on Google Play on your Android™ smartphone.
・For wireless connection, Bluetooth® pairing is required when connecting for the first time.

Connecting an Android™ Smartphone

You can connect via USB or wirelessly.

●NOTE
・There is no difference in the functions of Android Auto™ when using the wireless connection and the USB connection.
・If the Android™ Smartphones is connected to the USB port while using the wireless connection, the Android™ Smartphones battery is charged.

<USB connection>
Insert an Android™ Smartphone-genuine connector cord into the USB port to connect the Android™ Smartphone. Insert or pull out the plug with the plug perpendicular to the USB port.

➀ Located on center console
➁ Located on front console
The location of the USB port differs depending on the vehicle model.

●NOTE
・To use Android Auto™, you need to enable Bluetooth®.
・The parking brake must be engaged when connecting the Android Auto™ device for the first time.
・Android™ Smartphones can be connected to Android Auto™. Up to 5 Android™ Smartphones can be registered.
・When setting the Device Connection Status of a connected Android™ Smartphone to “Never Enabled”, Android Auto™ will not activate even if your Android™ Smartphone is connected to the vehicle’s USB port. When you want to use Android Auto™, change the setting.

<Wireless connection>*
Wireless access to Android Auto™ is available by connecting your Android™ Smartphones with Mazda Connect using Bluetooth® and Wi-Fi™.
*It may not be supported depending on the country of use.

<Connecting Android Auto™ for the first time>
When connecting Android Auto™ for the first time, a confirmation screen concerning the Android Auto™ activation is displayed.

・TypeA

Always Enable: Enables Android Auto™ each time without a confirmation.
Never Enable: Disables the currently connected device hereafter.
Enable Once: Enables the device only this time.
Cancel: Disables the device this time.

●NOTE
If you select “Enable Once”, the confirmation screen is displayed again the next time the engine or EV system is started. However, if the interval between stopping and starting the engine or EV system is short, the confirmation screen may not be displayed.

・TypeB

Start: To open.
Cancel: To not open.

How to use

How to operate Android Auto™.

Displaying the Android Auto™ screen

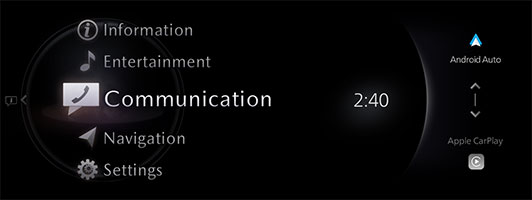

・TypeA

Android Auto™ is displayed on the Mazda Connect home screen while Android Auto™ is connected.
Slide the to the right while is Android Auto™ displayed to display the Android Auto™ screen or press and hold the Home button to display Android Auto™.
*Product image for illustration purposes only.

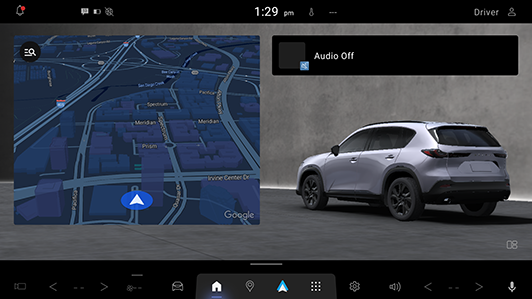

・TypeB

Android Auto™ is displayed on the Mazda Connect home screen while Android Auto™ is connected. Slide "Commander" up during the display to display the Android Auto™ screen.

Android Auto™ home screen

You can display the Android Auto™ home screen by pressing the on the commander switch while any Android Auto™ screen is displayed.
To move from the Mazda Connect screen to the Android Auto™ screen, press and hold the on the commander switch.

Rotate the or slide it to select the item or icon.
Press the to activate the application of a selected item or icon.
*Product image for illustration purposes only

●NOTE
・The media displayed on the Android Auto™ home screen may differ depending on the use conditions and version of the connected Android™ Smartphone.

No.	Icon	Explanation
1	-	Displays the information for each application. The displayed contents differ depending on the application that has been activated and its status.
2		Displays the Android Auto™ home screen.
3		Returns to the Mazda Connect screen.
4		Displays notifications from the Android™ Smartphone.
5		Activates Android Auto™ voice recognition.

Convenient ways to use Android Auto™

Item	Operation method
To operate using voice*1	Any of the following methods can be used to start voice recognition mode and operate Android Auto™ using voice. ・Just say “Hey Google”, or select the mic icon on the infotainment screen. ・Slide the to the right an select the . ・Press the on the audio remote control switch.
To display the NowPlaying screen	While music is playing using Android Auto™, press the on the commander switch to return to the Android Auto™ playback screen.
To display the MAP screen	During route guidance using Android Auto™, press the on the commander switch to return to the Android Auto™ map screen.
To return to the Mazda Connect screen	Press and hold on the commander switch.

*1 The voice recognition function of Mazda Connect cannot be used while Android Auto™ is connected.

To end Android Auto™, disconnect the connector cord from the USB port or disconnect the Android™ Smartphone from the connector cord.

OTHER ATTENTIONS

Software Update

Please contact your dealer for updates on Mazda Connect.

Troubleshooting

Symptom	Cause	Solution method
・Voice recognition is poor or incorrect. ・Voice recognition responds slowly or it does not work.	There is malfunction in the microphone.	A poor connection or malfunction with the microphone may have occurred. Consult an expert repairer (we recommend an Authorized Mazda Repairer).
Android™ cannot connect.	Only Bluetooth® devices are registered, and registration of Android Auto™ Wireless connection is not completed.	After selecting the device on the Bluetooth® setting screen, the screen will change to the connection profile selection screen, so select Android Auto™.

FAQ

Check here to see FAQ of Android Auto™ and others.

SEE MORE

Disclaimer

YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT USE OF ANDROID AUTO™ (“THE APPLICATION”) IS AT YOUR SOLE RISK AND THAT THE ENTIRE RISK PERFORMANCE, ACCURACY AND AS TO SATISFACTORY QUALITY,EFFORT IS WITH YOU TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, AND THAT THE APPLICATION AND INFORMATION ON THE APPLICATION IS PROVIDED “AS IS” AND “AS AVAILABLE,” WITH ALL FAULTS AND WITHOUT WARRANTY OF ANY KIND, AND MAZDA HEREBY DISCLAIMS ALL WARRANTIES AND CONDITIONS WITH RESPECT TO THE APPLICATION AND INFORMATION ON THE APPLICATION, EITHER EXPRESS,IMPLIED OR STATUTORY,INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES AND/OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE,ACCURACY, QUIET ENJOYMENT, AND NONINFRINGEMENT OF THIRD PARTY RIGHTS.
AS EXAMPLES, AND WITHOUT LIMITATION, MAZDA DISCLAIMS ANY WARRANTY REGARDING THE ACCURACY OF DATA PROVIDED BY THE APPLICATION, SUCH AS THE ACCURACY OF DIRECTIONS, ESTIMATED TRAVEL TIME, SPEED LIMITS, ROAD CONDITIONS, NEWS, WEATHER, TRAFFIC, OR OTHER CONTENT PROVIDED BY GOOGLE, ITS AFFILIATES, OR THIRD PARTY PROVIDERS; MAZDA DOES NOT GUARANTEE AGAINST LOSS OF APPLICATION DATA, WHICH MAY BE LOST AT ANY TIME; MAZDA DOES NOT GUARANTEE THAT THE APPLICATION OR ANY SERVICES PROVIDED THROUGH THEM WILL BE PROVIDED AT ALL TIMES OR THAT ANY OR ALL SERVICES WILL BE AVAILABLE AT ANY PARTICULAR TIME OR LOCATION. FOR EXAMPLE, SERVICES MAY BE SUSPENDED OR INTERRUPTED WITHOUT NOTICE FOR REPAIR,MAINTENANCE, SECURITY FIXES, UPDATES, ETC., SERVICES MAY BE UNAVAILABLE IN YOUR AREA OR LOCATION, ETC.
IN ADDITION, YOU UNDERSTAND THAT CHANGES IN THIRD PARTY TECHNOLOGY OR GOVERNMENT REGULATION MAY RENDER THE SERVICES AND/OR APPLICATIONS OBSOLETE AND/OR UNUSABLE. TO THE EXTENT NOT PROHIBITED BY LAW, IN NO EVENT SHALL MAZDA OR ITS AFFILIATES BE LIABLE FOR PERSONAL INJURY, OR ANY INCIDENTAL, SPECIAL,INDIRECT OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, CORRUPTION OR LOSS OF DATA, FAILURE TO TRANSMIT OR RECEIVE ANY DATA, BUSINESS INTERRUPTION OR ANY OTHER COMMERCIAL DAMAGES OR LOSSES, ARISING OUT OF OR RELATED TO THE APPLICATION OR YOUR USE OF OR INABILITY TO USE THE APPLICATION OR INFORMATION ON THE APPLICATION.

When using Android Auto™, please avoid distraction and use Android Auto™ responsibly.
Stay fully aware of driving conditions and always obey applicable laws.

●NOTE

・Android Auto™ is provided by Google and its use is subject to your agreement to the Android Auto™ terms of use.
・When using Android Auto™ ,location, speed, and other vehicle data is transferred to your smart phone. For further details, refer to Google Privacy Policy.

*Google, Android, Android Auto, Google Maps and other marks are trademarks of Google LLC. To use Android Auto on your car display, you'll need an Android phone running Android 6 or higher, an active dataplan, and the Android Auto app.
